HT-TX/SD Manual Rod Series

    HT-TX/SD Manual Rod Series

    ​The HT-SD series lifting mast is a special manual lifting mast device developed for portable mobile lighting equipment. The mast can be Pxed to a bracket or around the lighting equipment to vertically lift the lamp to a predetermined height. It is made of stainless steel and comes with an air pressure buffering device during the manual lifting process.The HT-SD series lifting mast can be selected at different heights of 2.8M, 3.5M, 3.9M, and 4.5M according to requirements.If this height cannot meet the work needs of the user, our company can also customize according to the customer's requirem...
  • 分享:
  • 联系我们 在线询价
SCOPE OF APPLICATION


   The HT-SD series lifting mast is a special manual lifting mast device developed for portable mobile lighting equipment. The mast can be Pxed to a bracket or around the lighting equipment to vertically lift the lamp to a predetermined height. It is made of stainless steel and comes with an air pressure buffering device during the manual lifting process.

The HT-SD series lifting mast can be selected at different heights of 2.8M, 3.5M, 3.9M, and 4.5M according to requirements.If this height cannot meet the work needs of the user, our company can also customize according to the customer's requirements.

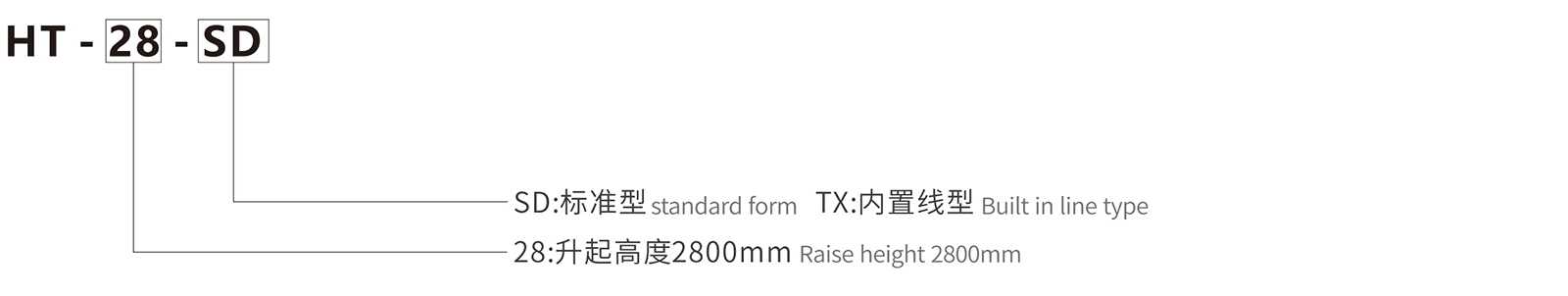

ORDERING SPECIFICATIONS


TECHNICAL PARAMETERS
Serial NumberSpecification ModelShrink HeightExtended HeightSection NumberMaximum load-bearing Capacity At The TopMaximum Outer Diameter
01HT-16TX55016204 Sections7.5KGØ47
02HT-33TX90233005 Sections7.5KGØ54
03HT-28SD113028003 Sections15KGØ38
04HT-35SD136535003 Sections15KGØ38
05HT-39SD120038504 Sections15KGØ45
06HT-45SD170045004 Sections15KGØ45


   Customization accepted for special specifications.
